Serial Servo Controller for eight servos

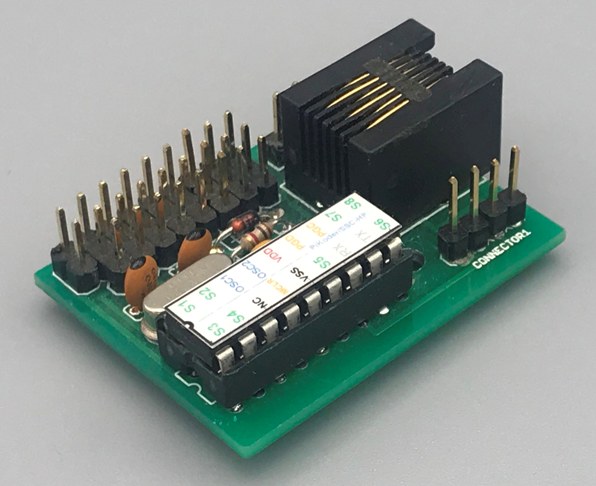

PiKoder/SSC: eight channel serial servo controller
PiKoder/SSC - EUR 5,00
Controller programmed with latest firmware release

The PiKoder/SSC Serial Servo Controller controls up to eight servos through a serial interface. Alternatively the outputs can be switched to binary. You can connect e.g. your Arduino or Raspberry Pi without any additional hardware to the SSC. A USB-converter allows you to control the servos from your computer.



The PiKoder/SSC supports two protocols:

  • MiniSSC protocol representing a very common protocol for controlling SSCs
  • a two-way ASCII-Protocol for customizing and controlling the SSC with standard terminal programs

You can operate the PiKoder/SSC with 3.3 Volts. This eliminates the need for a dedicated 5 V power supply in embedded systems when other modules such as Bluetooth transmitters are used which require 3.3 V.

The PCC (PiKoder Control Center) with its graphical user interfaces provides for testing and customization of the PiKoder/SSC.



PiKoder/SSC User's Guide (.pdf file)

The User's Guide provides detailed information regarding the features and the application of the PiKoder/SSC.



PiKoder/SSC Daisy Chaining (.pdf file, EN)

This application note outlines how you can control up to 255 servos by daisy chaining PiKoder/SSC.



PiKoder/SSC firmware 2.07 (ZIP archive)

This firmware is provided as freeware for private, non-commercial use. Please refer to the PiKoder Firmware License Agreement for more details. The download archive also includes a readme.txt file with specific release notes and a list of changes.

News und Updates

10/01/2017: PiKoder/SSC Release 2.7 features setting servo channels to digital outputs. Please refer to the PiKoder/SSC User's Guide for more information.

Accessories

Screen Print PCC
PiKoder Control Center (PCC)

PiKoder/SSC Evaluation Board Kit
PiKoder/SSC pcb

Related products

High Precision Servo Controller for 8 servos
Professional Servo Controller with I2C bus for eight servos
